Horizontal and bottom ZB

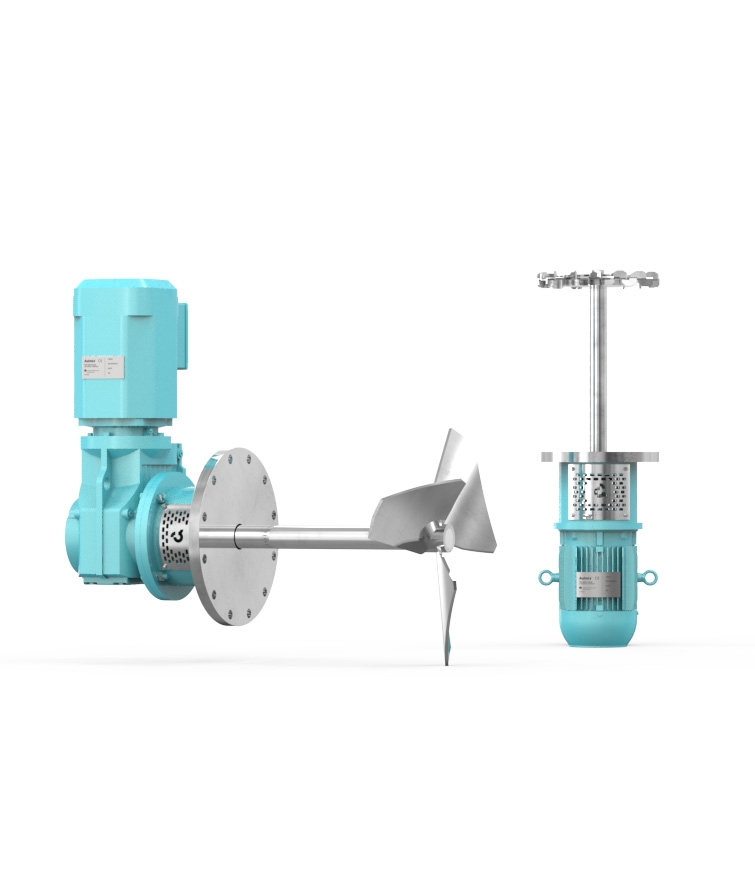

Gear Unit ZB(R) series

For every requirement

Gear Unit ZB(R) horizontal and bottom agitators are compact and efficient equipment in offering a low energy consumption in homogenization processes with low viscosity products, distillation, normalization, fermentation, or dispersion in big-volume storage tanks, in which is not allowed a vertical agitator or isn’t necessary.

Designed for an easy and quick assembly sealed by simple cartridge mechanical seals, this side entry equipment offers the option of integrating a full tank disassembly system, that facilitates maintenance tasks without the need to empty the tank or stopping production.

Technical specifications:

Power: 3 - 75 kW.

Speed: From 100 - 300 rpm.

Shaft length: Up to 1 800 mm.

Impeller diameter: 150 - 500 mm.

Tank: 3 m³ to 1 000 m³.

Industries that use horizontal gearbox horizontal agitator ZB(R)




Flow lines with Gamma impeller



Gear Unit ZB(R) horizontal and bottom agitator main features:

Efficient and compact

Ideal for storage tanks

Quick and easy assembly

Low energy consumption

Compatible impellers:

Gamma
Stokes
Nabla
Sabre

Mounting options:

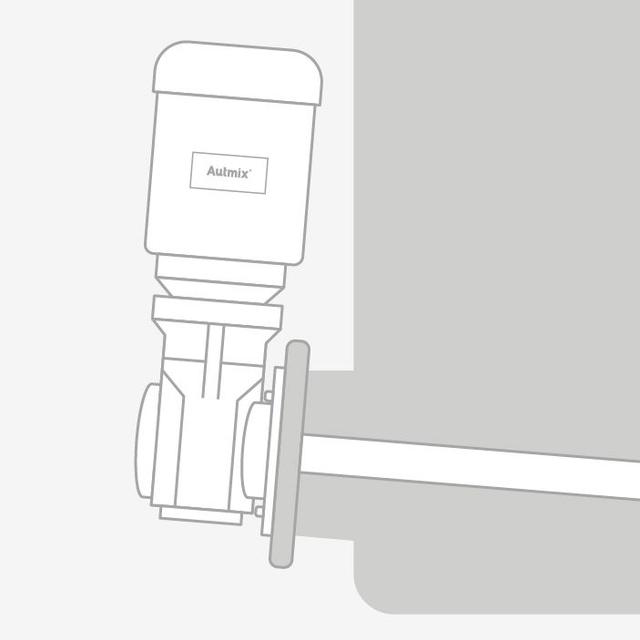

Flange
Mounting type flange for agitator.

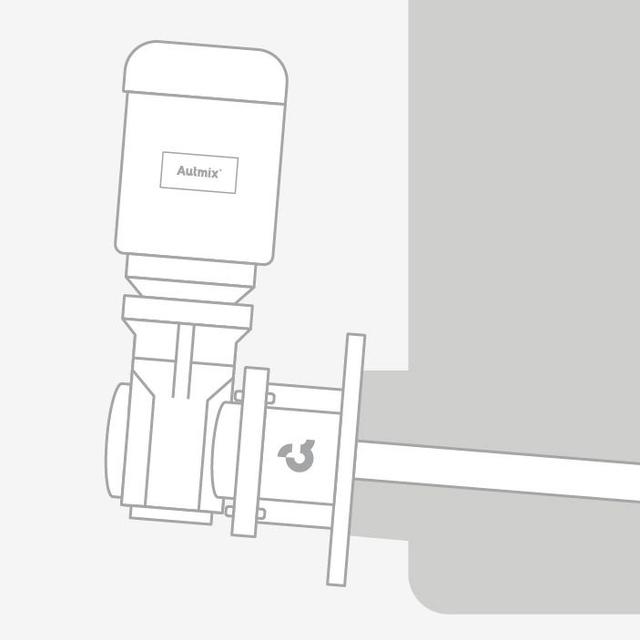

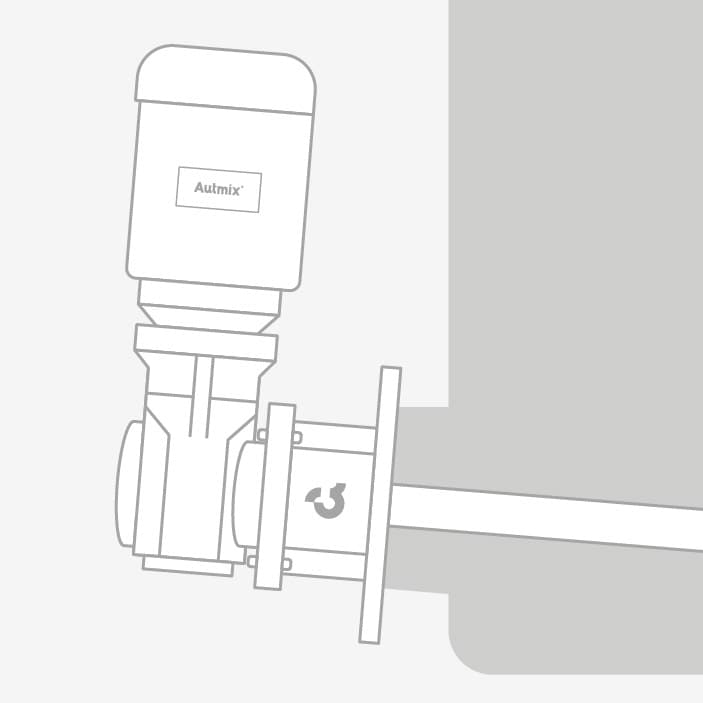

Lantern
Lantern mounting option for industrial agitator.
Amplia gama de recubrimientos disponibles para agitadores industriales.

Finishes and coatings for your processes:

PTFE

PVDF

EPDM

Halar

Butyl rubber

Natural rubber

Ebonite

Neoprene

Fiberglass

Manufacturing materials:

AISI 304

AISI 316

Carbon steel

Super duplex

Duplex

Titanium

Hastelloy

Uranus B6

Optional features:

Motors for explosive area ATEX

Special paints

ANSI or DIN Flange adaptation

Flange with emergency locking

Sealing options:

Cartridge seals

Cable gland

Double mechanical seals

Simple mechanical seals

Seals

Hydraulic labyrinth

More information about the Gearbox ZB(R)

Why choose an Autmix Flow’s Gearbox ZB(R) horizontal mixer?

Custom design

International certifications

Guaranteed quality

Support and maintenance

Set up your industrial agitator in Autmix.

Set up your industrial horizontal mixer

Autmix Flow’s solutions are customized to the project specifications; fill out the form and design the horizontal agitator you need.
