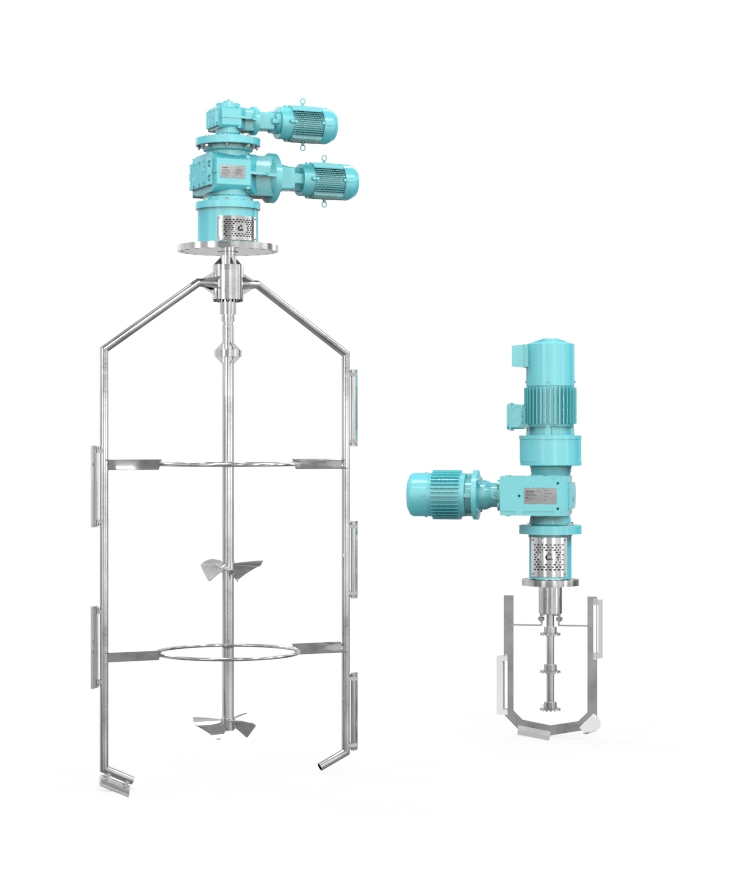

Industrial anchor agitator NC

Counter-rotating NC(T) series

Coaxial agitator for better mixes

Counter-rotating NC(T) industrial and anchor agitators are effective mixers characterized by having an anchor and a mobile with a greater rotation. This creates a flow in the opposite direction to each other, generating a flow that crosses inside the tank and ensuring the breakdown and distribution of every material evenly throughout the mix.

They are highly efficient industrial agitators, especially integrating the second counterrotating mobile which is determined according to the processes such as premixing, emulsion, dispersion, deaeration, and cooling.

Technical features:

Power: Motors from 2.2 - 132 kW.

Center shaft speed: 100 - 1 800 rpm.

Anchor speed: 5 - 60 rpm.

Impeller speed on central axis: 50 - 300 rpm.

Shaft length: 1 000 - 9 000 mm.

Impeller diameter: Up to 6 000 mm.

Anchor diameter: Up to 2 000 mm.

Tank: 0.5 m³ a 90 m³

Industries using the counter-rotating NC(T) series agitator

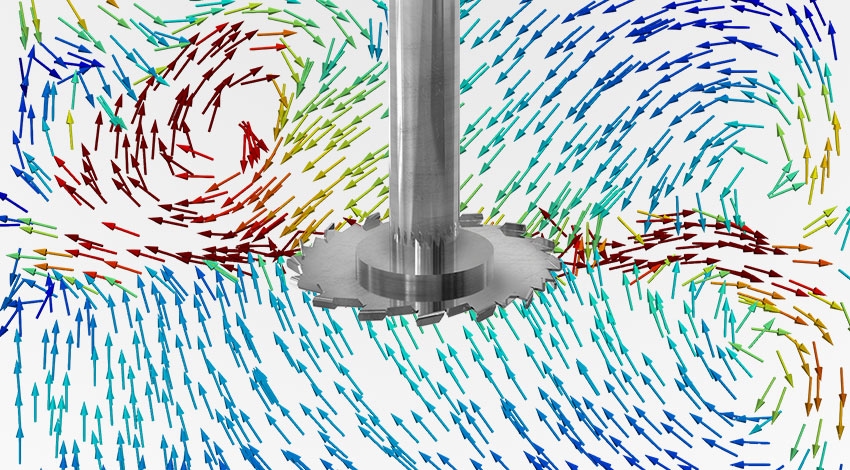

Flow lines cowles disc



Features of counter-rotating NC(T) industrial agitator:

Agitador industrial de con un segundo móvil central.

Central axis with a second rotating mobile.

High sheer force for mixing process with NC(T) agitator.

Ideal for processes that require high-shear and dispersion.

Flujo en contrarrotación para una doble acción sobre la mezcla.

Coaxial and counterclockwise rotation.

Agitador de ancla ideal para el tratamiento de fluidos de alta viscosidad.

Functionality in medium to high viscosity.

Compatible impellers:

Gamma

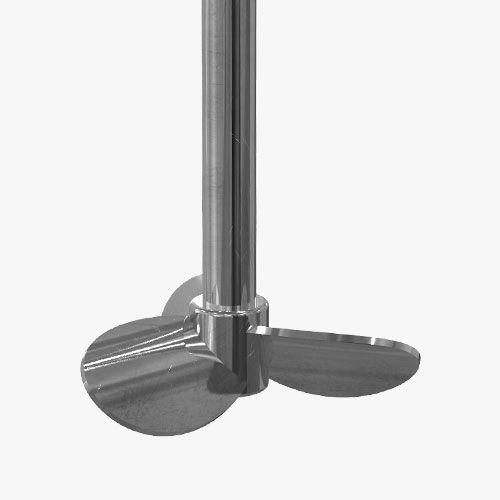

Marine

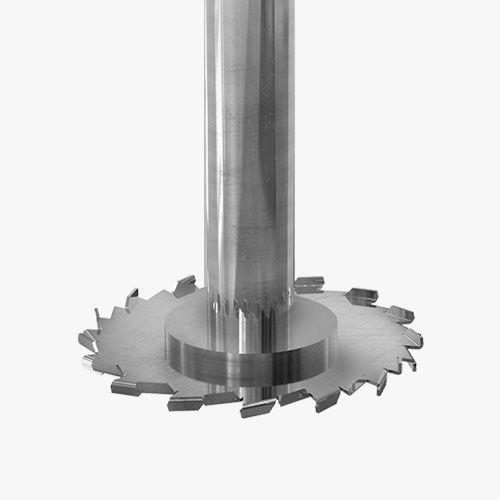

Cowles

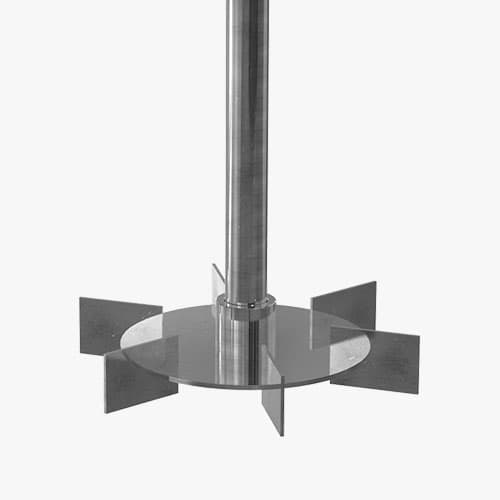

Rushton

Mounting options:

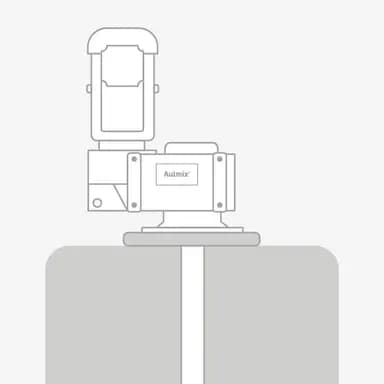

Flange
Flange_mounting type for industrial agitators.

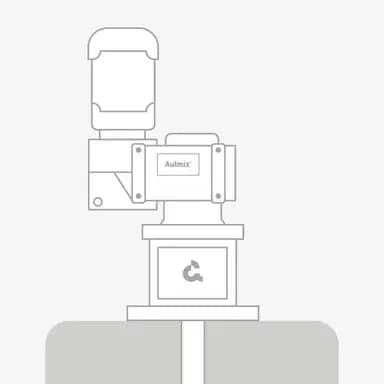

Lantern
Mounting option lantern for industrial agitators.

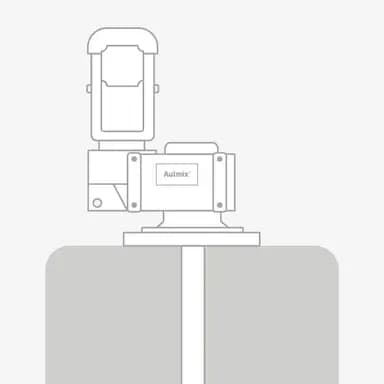

Plate
Mounting option plate for industrial agitators.
Amplia gama de recubrimientos disponibles para agitadores industriales.

Finishes and coatings for your processes:

PTFE

PVDF

EPDM

Halar

Butyl rubber

Natural rubber

Ebonite

Neoprene

Fiberglass

Manufacturing materials:

AISI 304

AISI 316

Carbon steel

Super Duplex

Duplex

Titanium

Hastelloy

Uranus B6

Optional features:

ATEX protection

Stainless steel housing

Food grade oil

Food grade epoxy paint

Full tank disassembly system

Autonomous cooling system (thermosyphon)

Sealing options:

Cartridge seals

Cable gland

Double mechanical seal

Simple mechanical seal

Seals

Hydraulic labyrinth

More information about the counter-rotating agitator NC(T)

Why should you choose an Autmix Flow’s counter-rotating NC(T) mixer?

Custom design

International certifications

Guaranteed quality

Support and maintenance

Set up your industrial agitator in Autmix.

Set up your industrial Counter-rotating NC(T) agitator

Autmix Flow’s solutions are customized to the project specifications; fill out the form and design the Counter-rotating NC(T) you need.
