Compact agitators CT

Gearbox CT(R) series

High-power with gearbox

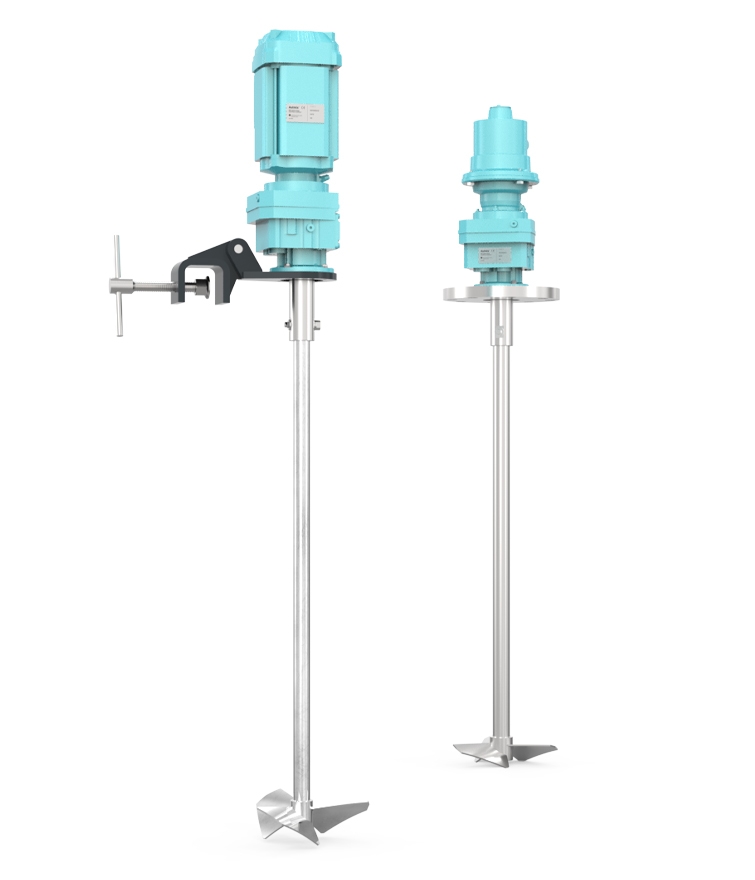

Gearbox CT(R) industrial compact agitator is the most potent equipment in its category. Also, it is very versatile due to its compatibility with a wide variety of impellers that increase the rotatory impulse in small to 7 m³ tanks.

It operates more efficiently as an industrial agitator designed for moderately viscous liquids or fluids. According to work conditions, it can integrate an electric or pneumatic motor.

Technical specifications:

Power: Motors from 0.37 - 5.5 kW.

Speed: From 100 - 350 rpm.

Shaft length: 250 - 1 500 mm.

Impeller diameter: 150 - 400 mm.

Tank: 0.5 m³ to 7 m³

Industries that use gearbox compact mixer CT(R)

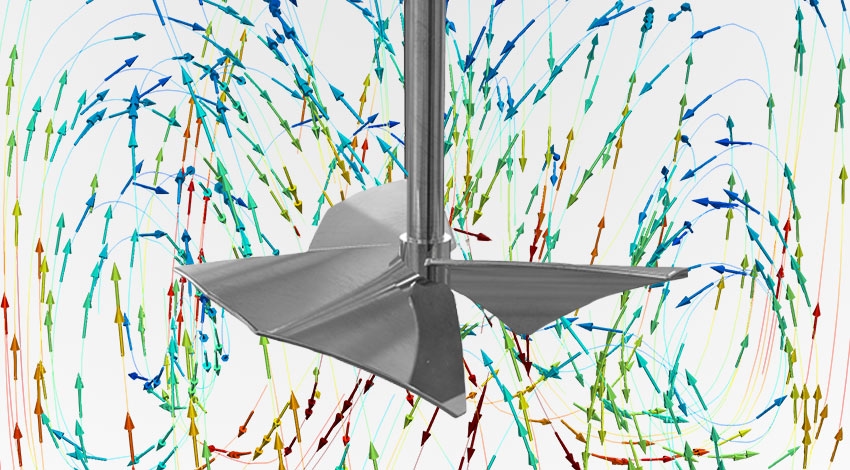

Flow lines with Sabre impeller



Gearbox CT(R) compact industrial agitator main features

They are the most potent equipment of compacts

Operation with a pneumatic or electric motor

Adaptability to work with moderate viscosity fluids

Provides more versatility using a gearbox

Compatible impellers:

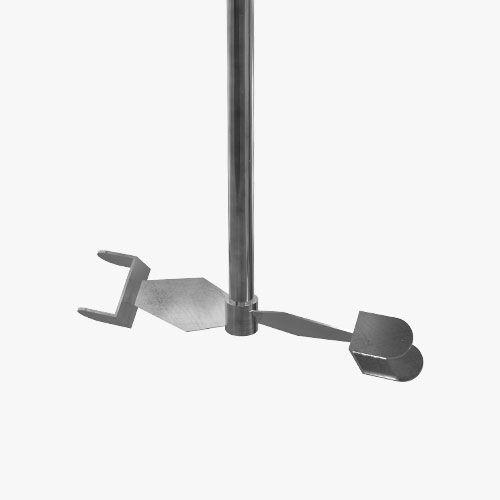

Gamma
Stokes
Nabla
Sabre

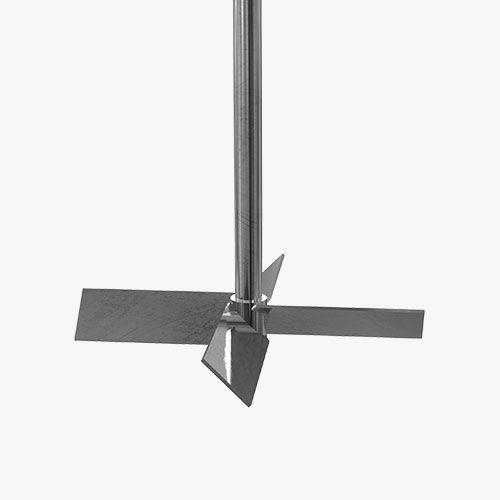

Axial turbine
Radial turbine
Double flow

Mounting options:

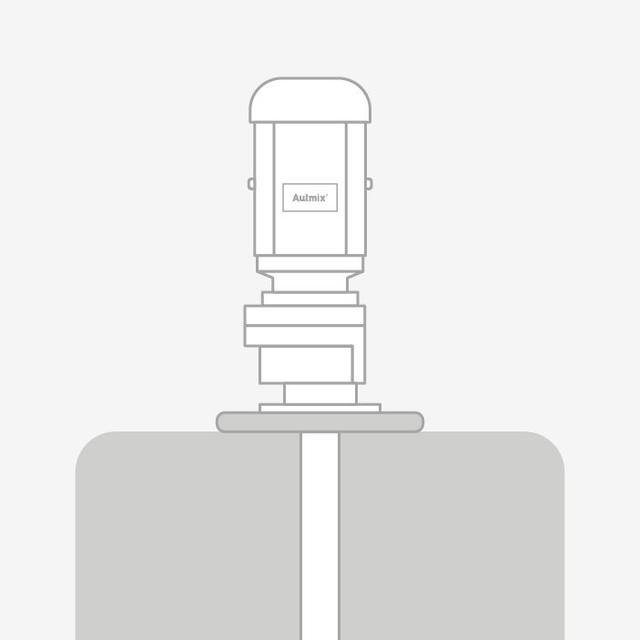

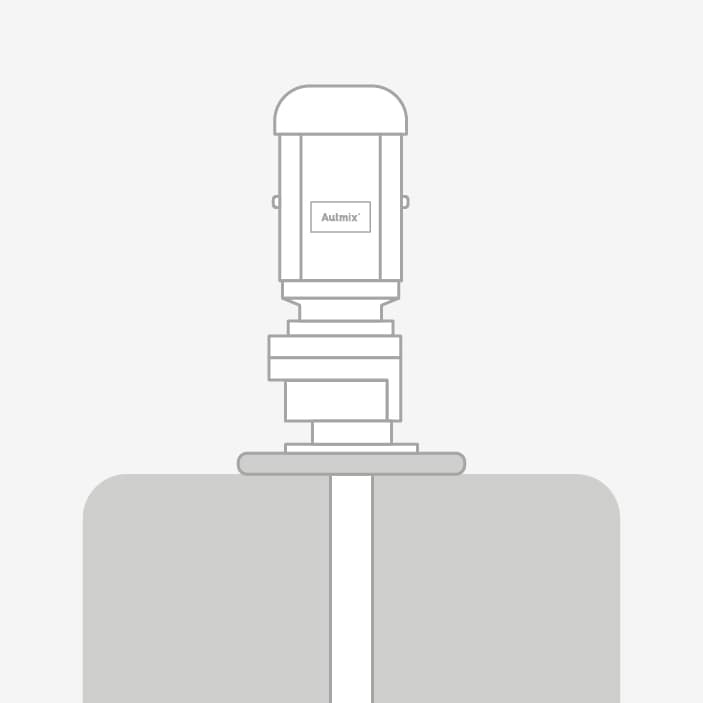

Flange
Flange mounting type for compact agitator.

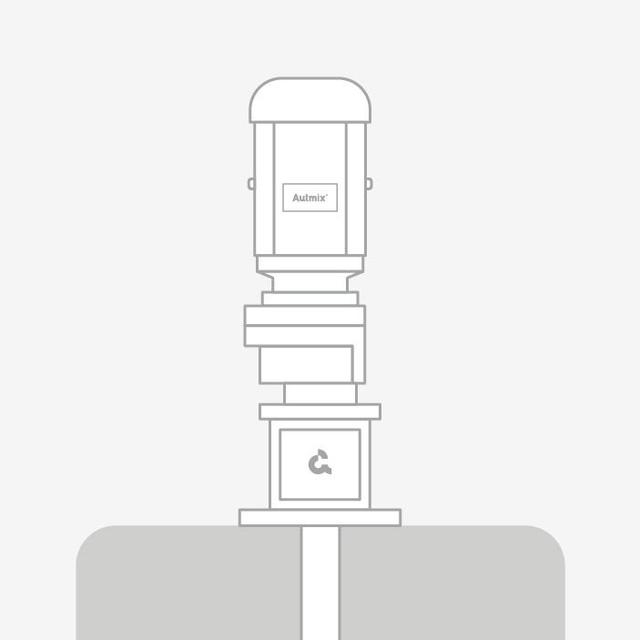

Lantern
Mouting option lantern for compact agitator.

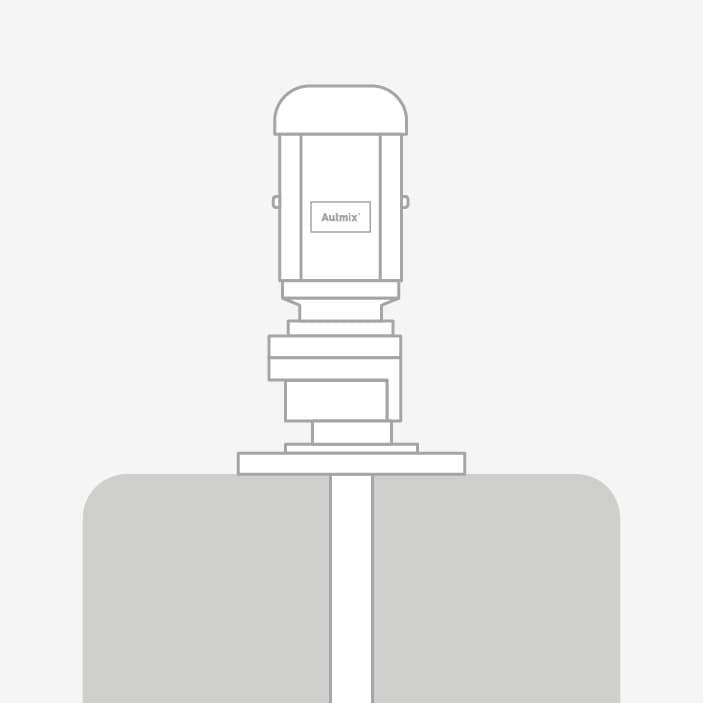

Plate
Mounting opction plate for industrial compact agitators.

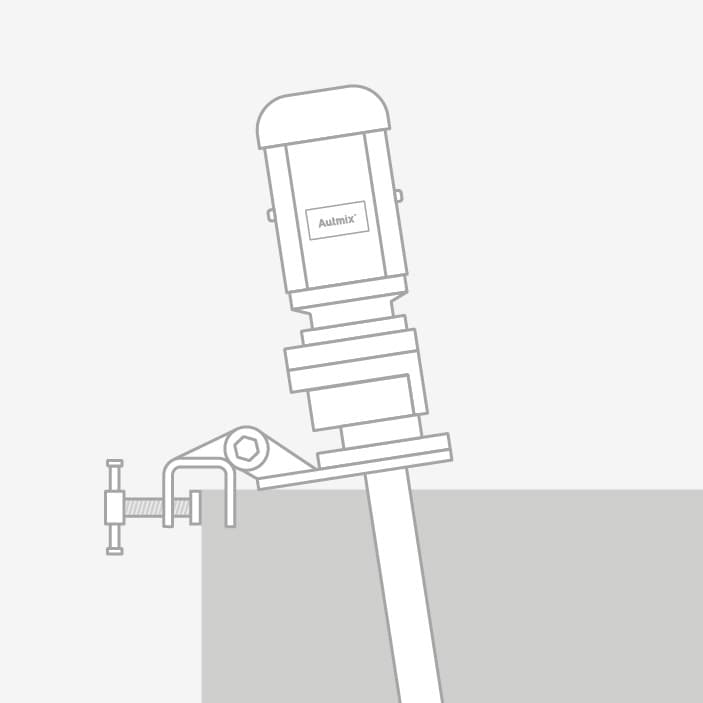

Clamp
Mounting option clamp style for compact agitators.
Amplia gama de recubrimientos disponibles para agitadores industriales.

Finishes and coatings for your processes

PTFE

PVDF

EPDM

Halar

Butyl rubber

Natural rubber

Ebonite

Neoprene

Fiberglass

Manufacturing materials:

AISI 304

AISI 316

Carbon steel

Super duplex

Duplex

Titanium

Hastelloy

Uranus B6

Optional features:

ATEX protection

Stainless steel housing

Food grade oil

Food grade epoxy paint

Full tank disassembly system

Autonomous cooling system (thermosyphon)

Sealing options:

Cartridge seals

Cable gland

Double mechanical seals

Simple mechanical seals

Seals

Hydraulic labyrinth

More information about the gearbox CT(R) series

Why choose an Autmix Flow’s gearbox compact mixer?

Custom design

International certifications

Guaranteed quality

Support and maintenance

Set up the perfect agitator for your mixing projects.

Set up your gearbox compact mixer CT(R)

Autmix Flow’s solutions are customized to the project specifications; fill out the form and design the anchor agitator you need.
