Vertical Agitators RT

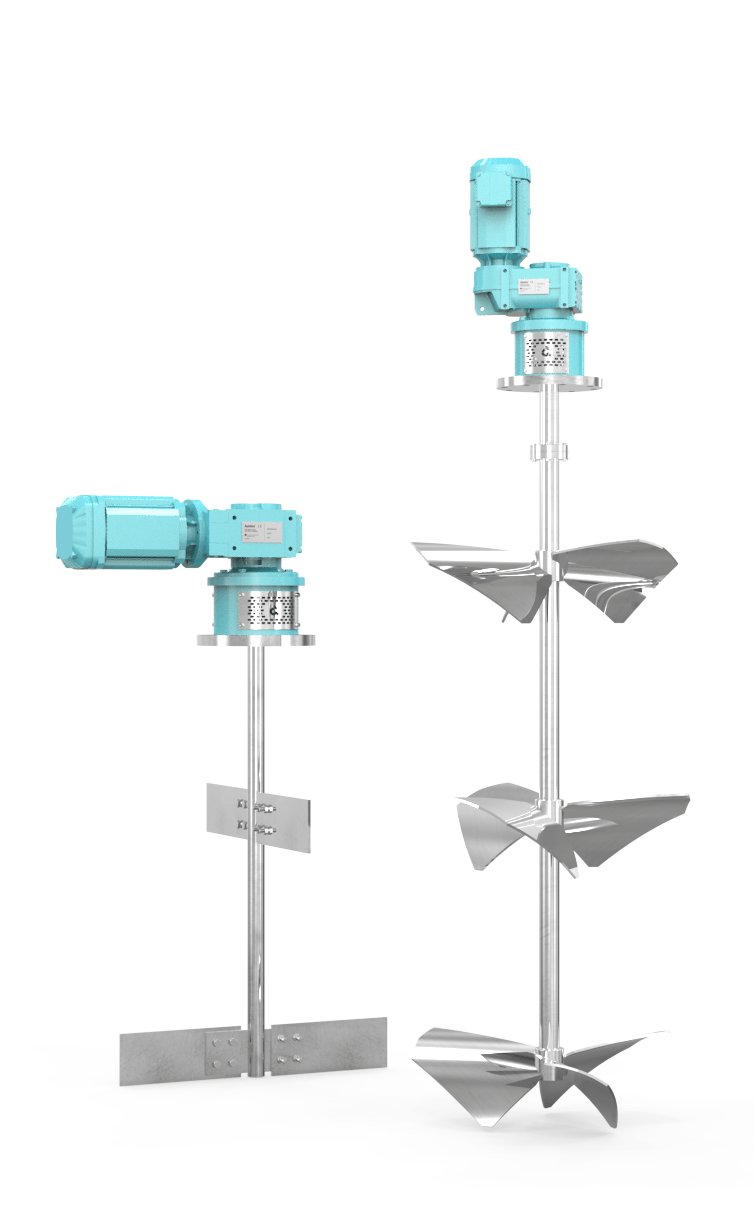

Inter RT(N) series

Ideal for a diversity of processes

Inter RT(N) industrial polyvalent mixer is versatile equipment for diverse applications and industries. Offers a high energy performance and elevated mixing efficiency in 5 to 20 m³ deposits.

It is a mixing process modular equipment; made to measure the project’s needs: easy operation, low maintenance, and compatible with a wide range of impellers, according to the process.
Additionally, it can integrate an autonomous refrigeration system, a great auxiliary preventing wear on mechanical seals.

Technical features

Power: 3.7 - 18.7 kW.

Speed: From 20 - 125 rpm.

Shaft length: 2 000 - 6 000 mm.

Impeller diameter: 400 mm – 2 000 mm.

Tank: 5 m³ to 20 m³.

Industries that use Inter RT(N) mixers

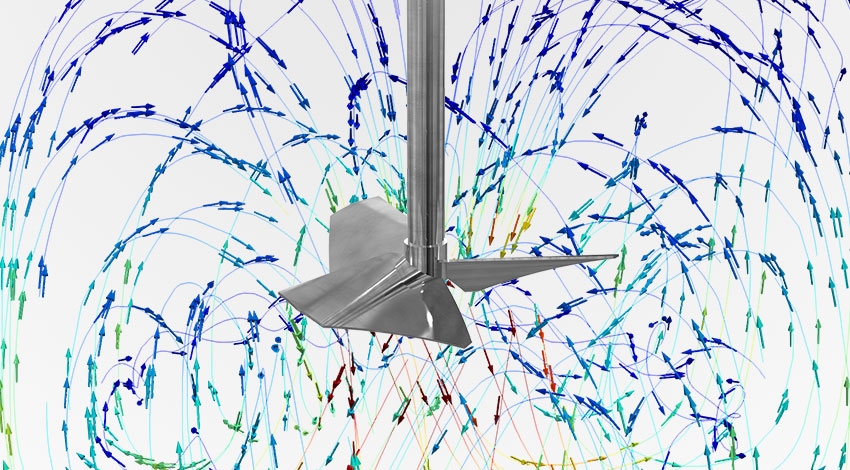

Flow lines with Nabla impeller



Inter RT(N) main features:

Perfect for tanks of various volumes

Different settings to operate according to requirements

Wide range rotary speed

Ideal power for different viscosities

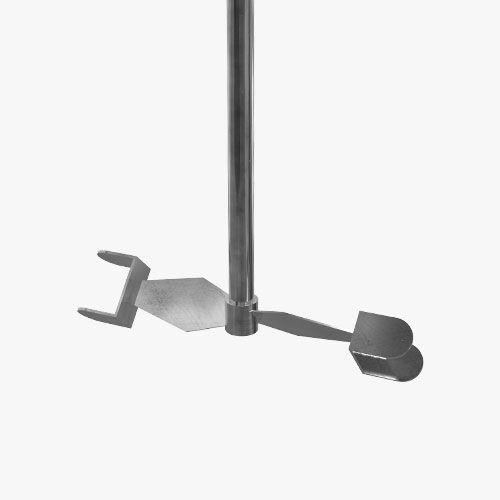

Compatibles impellers:

Gamma
Stokes
Nabla
Sabre
Cowles
Rushton
Axial turbine
Radial turbine
Double flow

Mounting options:

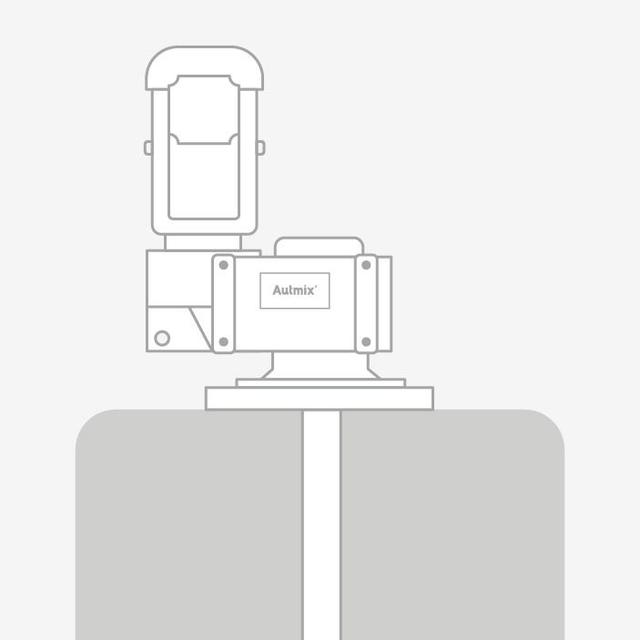

Flange
Flange_mounting type for industrial agitators.

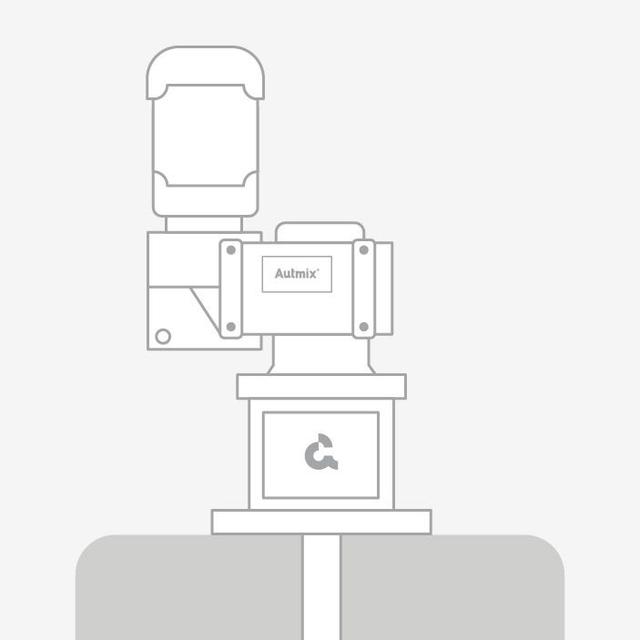

Lantern
Mounting option lantern for Inter RT(N).
Plate
Plate mounting option for Inter RT(G) industrial agitator.
Amplia gama de recubrimientos disponibles para agitadores industriales.

Finishes and coatings:

PTFE

PVDF

EPDM

Halar

Butyl rubber

Natural rubber

Ebonite

Neoprene

Fiberglass

Manufacturing materials:

AISI 304

AISI 316

Carbon steel

Super duplex

Duplex

Titanium

Hastelloy

Uranus B6

Optional features:

ATEX protection

Stainless steel housing

Food grade oil

Food grade epoxy paint

Full tank disassembly system

Autonomous cooling system (thermosyphon)

Sealing options:

Seals

Cartridge seals

Cable gland

Double mechanical seals

Simple mechanical seals

Hydraulic labyrinth

More information about the Inter RT(N)

Why should you choose an Autmix Flow’s Inter RT(N) mixer?

Custom design

International certifications

Guaranteed quality

Support and maintenance

Set up your industrial agitator in Autmix.

Set up your industrial mixer Inter RT(N)

Autmix Flow’s solutions are customized to the project specifications; fill out the form and design the industrial agitator you need.
