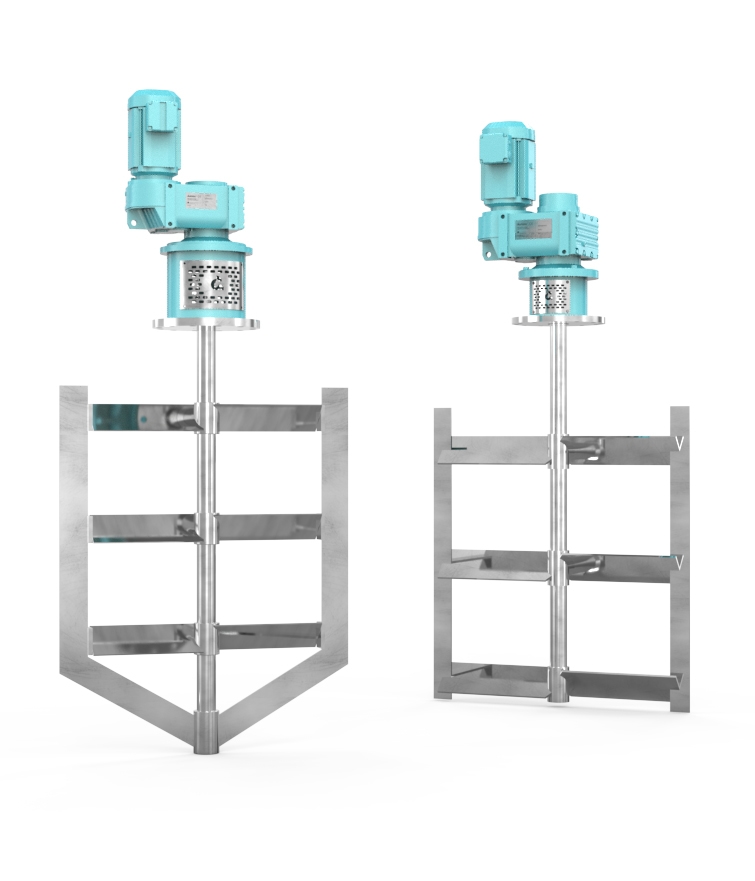

Anchor agitator NC

Standard NC(S) series

For temperature exchange processes

Standard NC(S) are the purest models from the anchor industrial mixers or anchor mixing equipment. This industrial agitator’s main characteristic is its capacity of working efficiently with medium to high viscosity in transferring heat and homogenization processes, ensuring constant movement for all the deposit.

These equipments are designed for every geometry and condition. The implementation of scrappers allows an effective mix and avoid accumulations of material throughout the container, reducing waste and improving the product quality.

Technical specifications

Power: Motors from 2.2 - 132 kW.

Speed: From 5 - 60 rpm.

Shaft length: 1 000 - 9 000 mm.

Impeller diameter: Up to 6 000 mm.

Tank: From 0.5 m³ a 90 m³.

Industries that use standard anchor mixer NC(S)

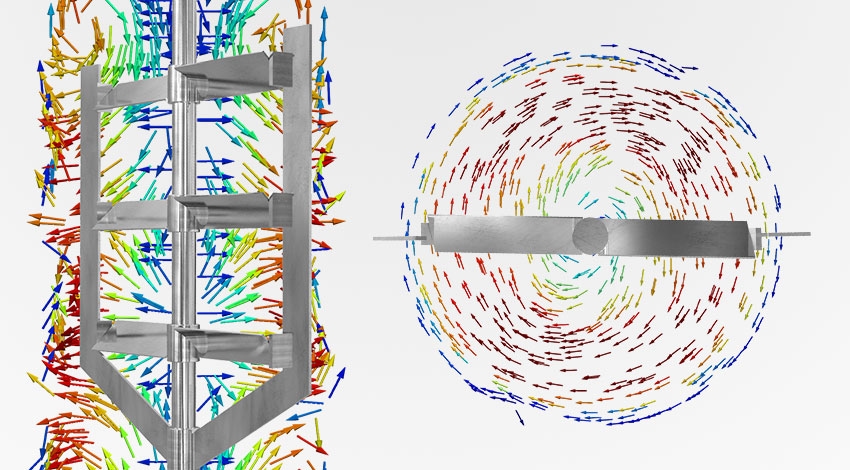

Anchor impeller flow lines



Standard NC(S) anchor agitator features:

Ideal for high viscosity fluids.

Option to place scrapers on the side arms.

Axial flow blades in the central part.

Perfect working with temperature exchange processes.

Compatible additional impellers:

Gamma
Stokes
Nabla
Sabre
Axial turbine
Radial turbine

Mounting options:

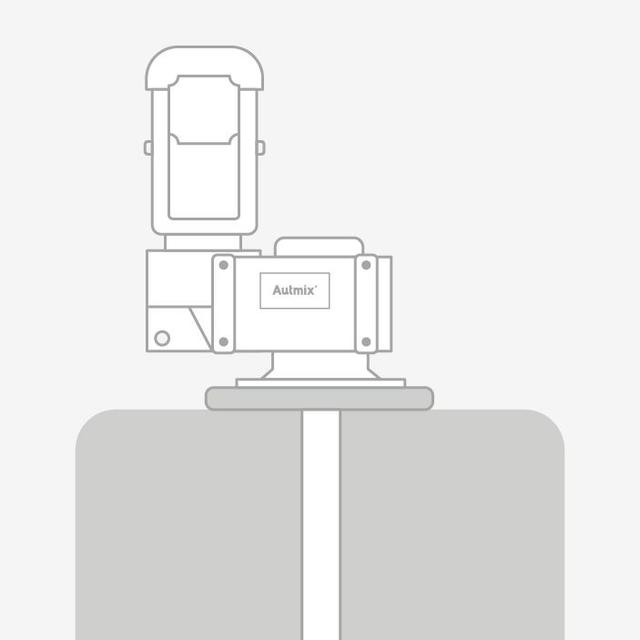

Flange
Flange_mounting type for industrial agitators.

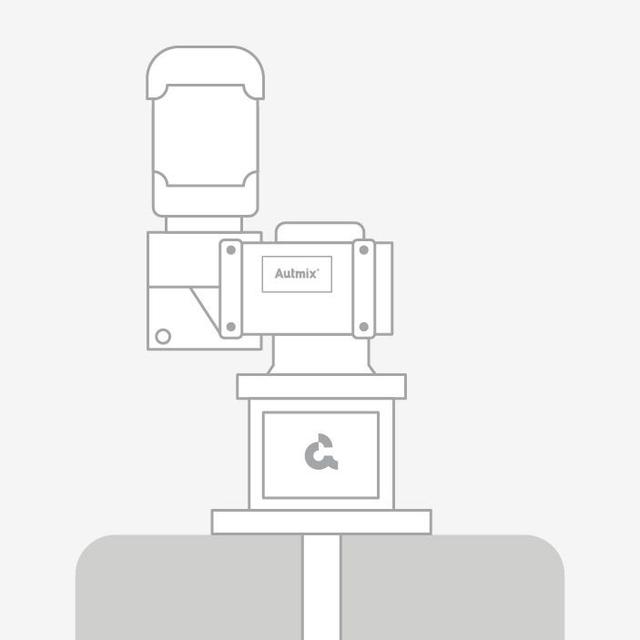

Lantern
Mounting option lantern for industrial agitators.

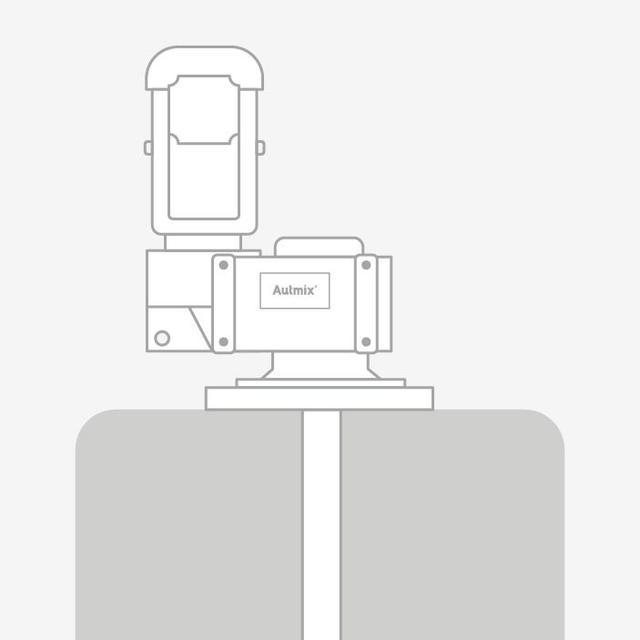

Plate
Mounting option plate for industrial agitators.

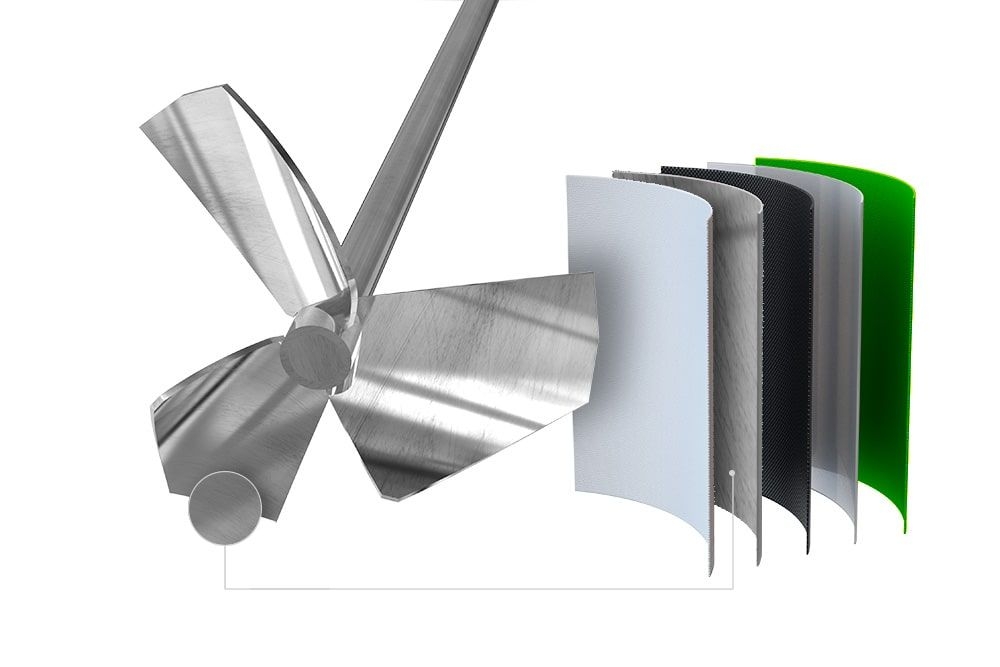

Amplia gama de recubrimientos disponibles para agitadores industriales.

Finishes and coatings for your processes:

PTFE

PVDF

EPDM

Halar

Butyl rubber

Natural rubber

Ebonite

Neoprene

Fiberglass

Manufacturing materials:

AISI 304

AISI 316

Carbon steel

Super duplex

Duplex

Titanium

Hastelloy

Uranus B6

Optional features:

ATEX protection

Stainless steel housing

Food grade oil

Food grade epoxy paint

Full tank disassembly system

Autonomous cooling system (thermosyphon)

Sealing options:

Cartridge seals

Cable gland

Double mechanical seals

Simple mechanical seals

Seals

Hydraulic labyrinth

More information about standard anchor NC(S)

Why should you choose an Autmix Flow’s Anchor mixer NC(S)?

Custom design

International certifications

Guaranteed quality

Support and maintenance

Set up your industrial agitator in Autmix.

Set up your standard anchor mixer NC(S)

Autmix Flow’s solutions are customized to the project specifications; fill out the form and design the anchor agitator you need.
