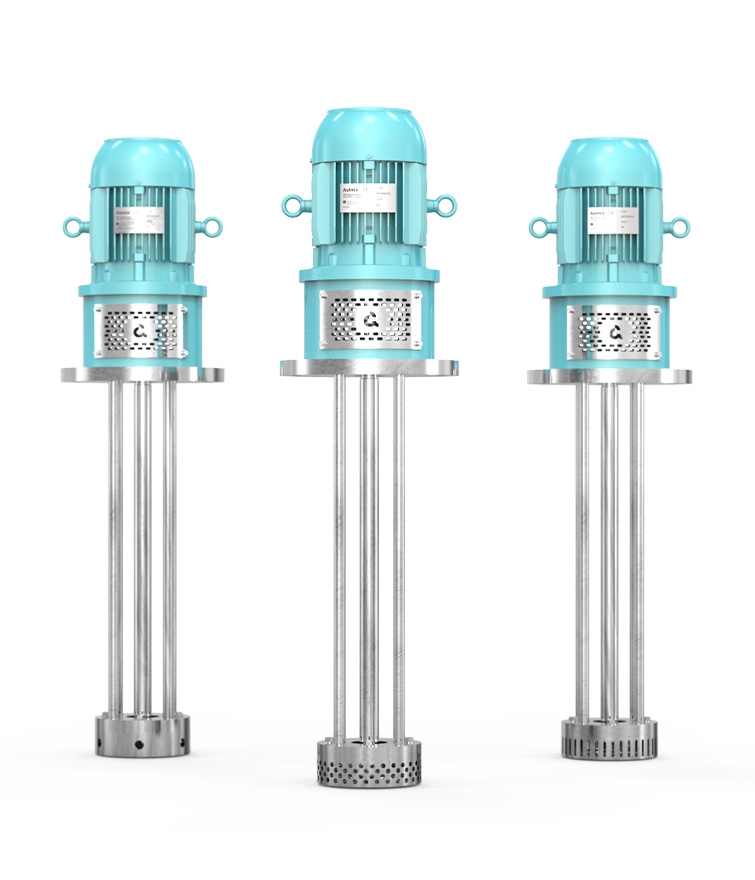

Rotor-stator industrial mixer

Rotor-stator RE(S) Series

High-shear radial flow

Rotor-stator RE(S) is equipment designed for fluid treatment with different viscosities. Thanks to their characteristics, they implement shear force in axial flow, with high power.

This rotatory, micronizer and multiple-use agitator is auxiliary in procedures such as homogenization, emulsion, and dispersion, and has the option to integrate three kinds of stator: standard, slotter, and emulsifier.

Technical specifications:

Power: 2.2 - 55 KW.

Output speed: (50Hz) (750, 1 000, 1 500 rpm), (60Hz) and (900, 1 200, 1 800 rpm).

Shaft length: 2 000 mm.

Propeller diameter: Up to 400 mm.

Tank: 0.1 m3 a 7 m3.

Industries that use rotor-stator RE(S)

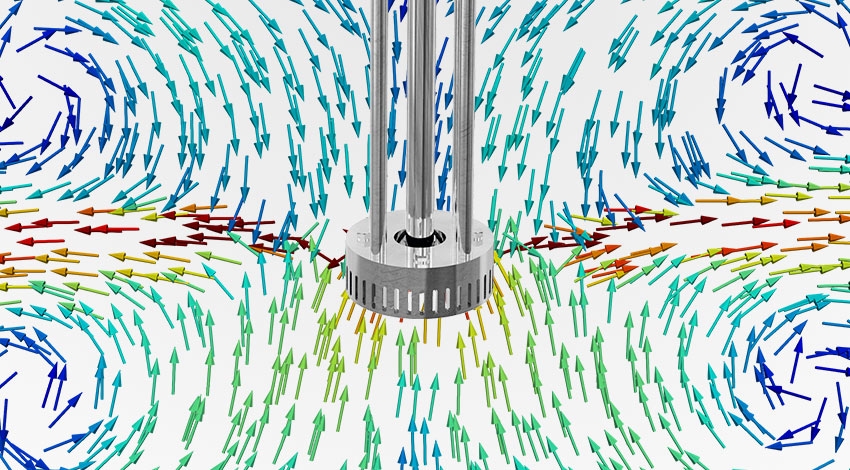

Flow line and shear with rotor-stator



Rotor-stator mixer RE(S) main features:

High shear level

Ideal for different viscosities.

Small volume capacity.

Perfect for homogenization and emulsion.

Stator types:

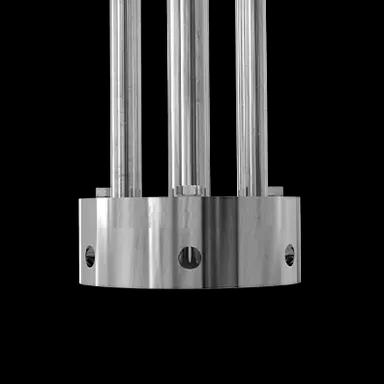

Standard
Rotor-Stator impeller for industrial mixing.

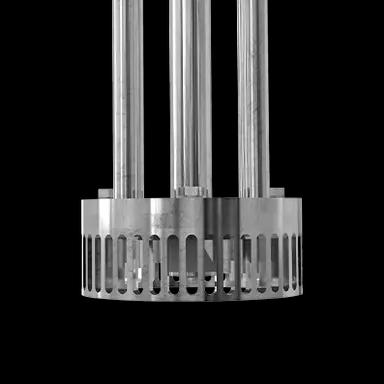

Slotted
Slotted impeller for Rotor-Stator.

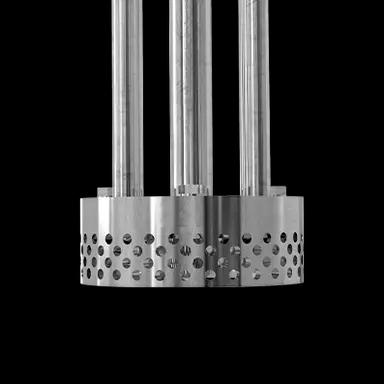

Emulsifier
Emulsifier for Rotor-Stator.

It generates controlled pumping, as well as functional operations, and with a mobile that can have from 4 to 6 circular holes and a diameter equivalent to a third of the height of the agitator.

It has 36 grids distributed vertically across the width of the stator. This quality allows the dispersion and disintegration of fibrous materials, such as animal or vegetable tissues, rubber, or elastic polymers.

The high shearing allows emulsions to be made in tasks that seek a homogeneous result.

Additional compatible impellers:

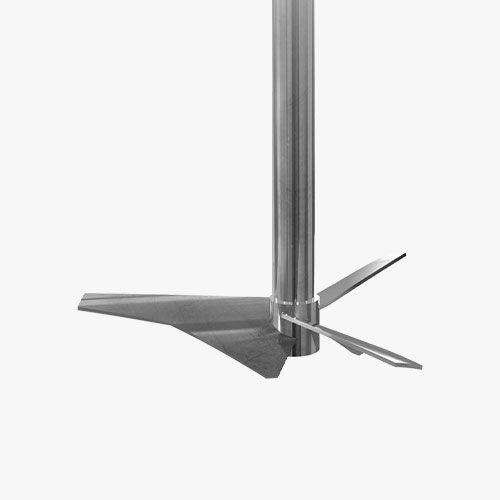

Gamma

Mounting options:

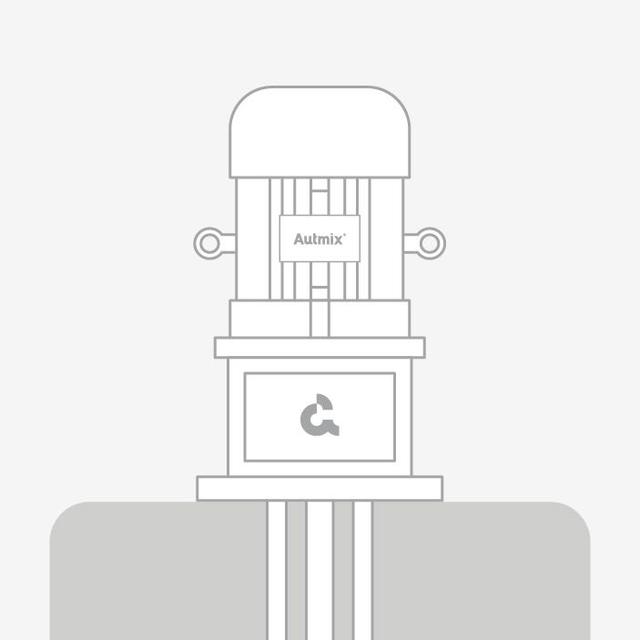

Lantern
Mounting option lantern for RE(S).
Amplia gama de recubrimientos disponibles para agitadores industriales.

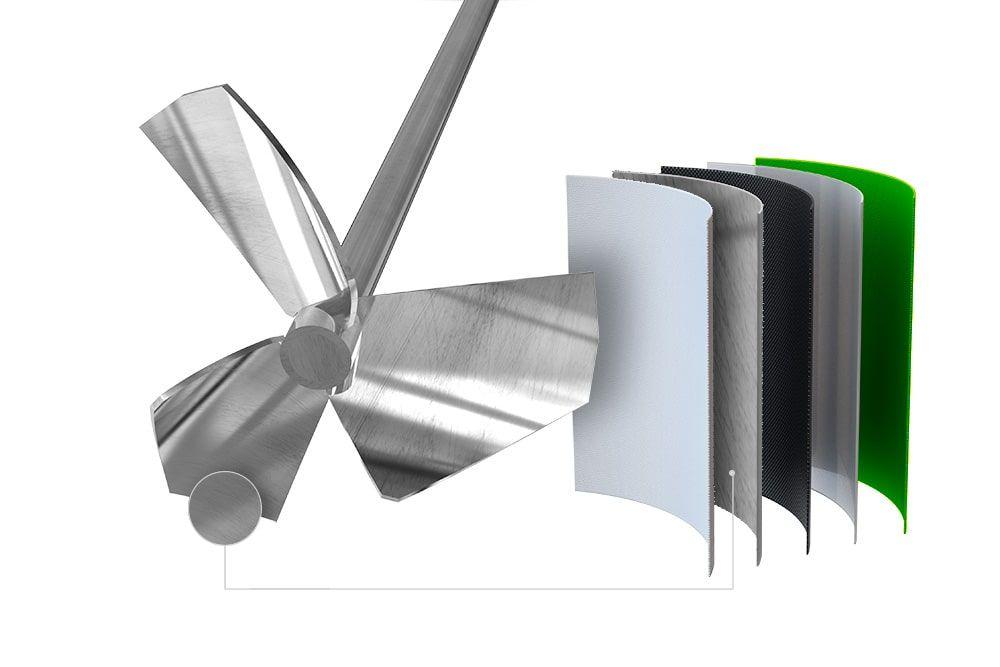

Finishes and coating:

PTFE

PVDF

EPDM

Halar

Butyl rubber

Natural rubber

Ebonite

Neoprene

Fiberglass

Sanitary polishing

Manufacturing materials:

AISI 304

AISI 316

Carbon steel

Super duplex

Duplex

Optional features:

ATEX protection

Stainless steel housing

Food grade oil

Food grade epoxy paint

Sealing options:

Seals

Cartridge seals

Cable gland

Double mechanical seals

Simple mechanical seals

More information about the RE(S) industrial mixer

Why should you choose Autmix Flow’s rotor-stator RE(S) industrial mixer?

Custom design

International certifications

Guaranteed quality

Support and maintenance

Set up the perfect agitator for your mixing projects.

Set up your industrial mixer

Autmix Flow’s solutions are customized to the project specifications; fill out the form and design the industrial agitator you need.
