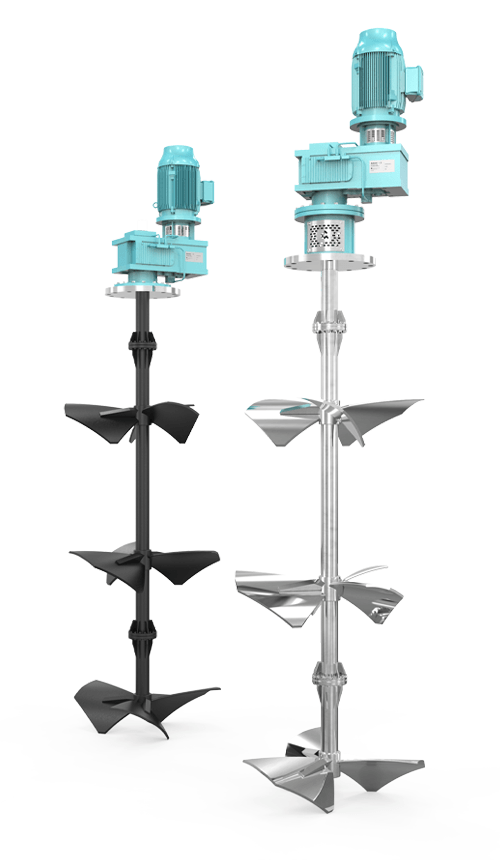

Mega RT(G) heavy duty agitators are made for large tanks capacity and are high-performance. They offer trustful execution in demanding applications with extreme conditions, such as water treatment or purification, mineral processing, recovery, and sugar crystallization.
Equipped with reinforcements along the shaft for safe operation and withstands erosion conditions, contact with corrosive chemicals, acids, abrasive minerals and other products. Designed to operate in atmospheric tanks or containers of more than 20m³.
Technical specifications:
Power: 18.5 - 400 kW.
Speed: From 20 - 125 rpm.
Shaft length: 6 000 mm - 20 000 mm.
Impeller diameter: 2 000 mm - 10 000 mm.
Tanks: Bigger than 20 m³.
Industries that use heavy duty agitator Mega RT(G)
Flow lines with Sabre impeller
Mega RT(G) industrial agitator main features:
For large-size tanks
Mobiles up to 10 meters in diameter
Reinforcement along the axis
Operation with high turning power
Compatible impellers:
Mounting options:
Finishes and coatings for your processes:
PTFE
PVDF
EPDM
Halar
Butyl rubber
Natural rubber
Ebonite
Neoprene
Fiberglass
PVC
Hypalon
Manufacturing materials:
AISI 304
AISI 316
Carbon steel
Super duplex
Duplex
Titanium
Hastelloy
Uranus B6
Optional features:
Bottom bearing
Motors for explosive area ATEX
Special paints
ANSI or DIN Flange adaptation
Flange with emergency locking
Sealing options:
Seals
Cartridge seals
Cable gland
Double mechanical seals
Simple mechanical seals
Hydraulic labyrinth
More information about Mega RT(G) heavy duty agitator
Why choose an Autmix’ Mega RT(G) mixer?
Custom design
International certifications
Guaranteed quality
Support and maintenance
